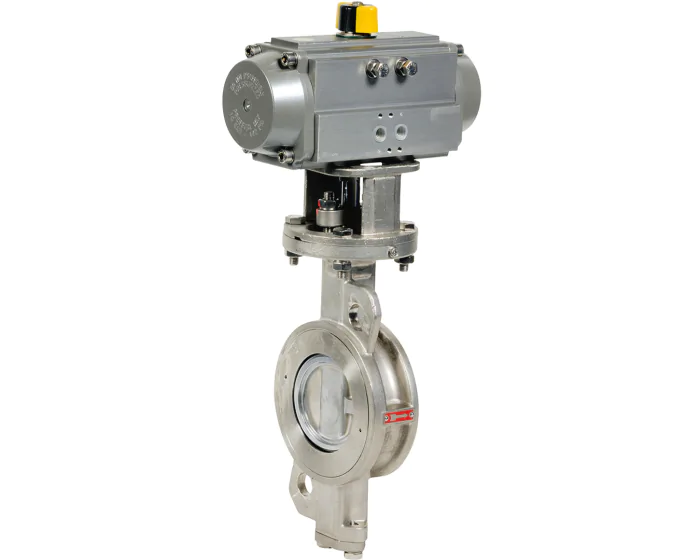

The 1114 double offset butterfly valve is made stainless steel body and disc and a PTFE/graphite seat. It is actuated with an ALPHAIR pneumatic actuator. PS: 25 bar, TS: 210°C. Mounting between flanges PN16/25.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN50 - 2'' |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| Packing gland | Graphite |
| PS (bar) | 25 |
| Connections | Between flanges PN25 |
| Seats | PTFE-Graphite |
| Pneumatic actuator type | Spring return |
| Butterfly valve design | Double offset |
| Wafer/lug | Wafer |
| ATEX zone | 1.21.2.22 |
| CE | Risk category III |
| Range | High performance butterfly valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN50 - 2'' | 260970017008R | S1000519 |
€876.67
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN50 - 2'' | 260970017109R | S1000520 |
€964.36
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN65 - 2''1/2 | 260971017008R | S1000521 |
€901.94
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN65 - 2''1/2 | 260971017109R | S1000522 |
€989.73
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN80 - 3'' | 260972017008R | S1000523 |
€1,081.20
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN80 - 3'' | 260972017110R | S1000524 |
€1,250.51
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN100 - 4'' | 260973017009R | S1000525 |
€1,298.53
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN100 - 4'' | 260973017111R | S1000526 |
€1,561.69
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN125 - 5'' | 260974017010R | S1000527 |
€1,693.04
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN125 - 5'' | 260974017112R | S1000528 |
€1,924.16
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN150 - 6'' | 260975017011R | S1000529 |
€1,961.94
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN150 - 6'' | 260975017113R | S1000530 |
€2,422.01
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN200 - 8'' | 260976017012R | S1000531 |
€3,100.80
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN200 - 8'' | 260976017114R | S1000532 |
€3,519.00
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN250 - 10'' | 260977017012R | S1000533 |
€4,228.91
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN250 - 10'' | 260977017115R | S1000534 |
€5,408.31
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN300 - 12'' | 260978017013R | S1000535 |
€6,007.80
(excl. btw)
|
add to cart |
| Between flanges PN25 Stainless steel CF8M (1.4408) Double offset DN300 - 12'' | 260978017116R | S1000536 |
€6,925.80
(excl. btw)
|
add to cart |
